0-360° DIGITAL MAGNETIC SPIRIT LEVEL INCLINOMETER ANGLE FINDER 455mm + BACKLIGHT

0-360° DIGITAL MAGNETIC SPIRIT LEVEL INCLINOMETER ANGLE FINDER 455mm + BACKLIGHT

Regular price £46.97 GBP
Regular price Sale price £46.97 GBP
Sale Sold out
Tax included.

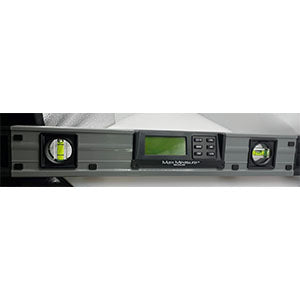

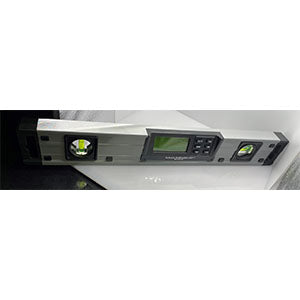

This Digital Spitit Level (inclinometer) is a innovative tool that provides digital reading between 4 x 90.00 degree angles (0-360.00 degree), simply place it on the surface to be measured and it gives a digital readout of angle with an icon showing deviations to the horizontal or vertical.
\n
\nConstructed with a tough precision machined frame approx. 455mm long (just under 10 Inches)it has 2 magnets on the base and 2 x Vials bubbles enabling it to be used as a conventional spirt level.
\n
\nIP54 Dust and Splashproof for use in harsher environments.
\n
\nIt's extra-large LCD is convenient to read, with bright green back light and rotating display for when working overhead. Very easy to carry and use and store,
\n
\nRecalls the ast 8 angle measurements.
\n
\nAudio Beeper function will sound when the Protractor is at 0 or plumb 90°.
\n
\nFeatures,
\n• Measuring range 4 x ±90.00 degree (0-360 degree)
\n• Spirit Level with 2 conventional Vials (Horizontal &amp, Vertical) &amp, 2 x Magnets on Base
\n• Converse between ABS (normal Angle Value) &amp, INC mode (Zero Setting)
\n• Large Digital LCD Display with Rotating Display
\n• Hold Function Button
\n• Memory Recall (recall last 8 angle readings)
\n• Standard reference plane at 0.0° (true level)
\n• REF button for Relative angle mode
\n• Measures, Degrees, mm/m, % and in/ft
\n• Green Backlight
\n• Audio Beeper
\n• Absolute and Relative Measurement
\n• 'HOLD' button to freeze reading
\n• Simple user recalibration procedure
\n• Battery type 2 x AAA supplied
\n• Long battery life (&gt,2000 hours)
\n• Automatic shutdown for power-save
\n
\nSpecifications,
\n• Measuring range 4 x ±90.00 degree (0-360 degree)
\n• Measuring accuracy, =/-0.1 deg (at 0 &amp, 90 Deg.) / =/-0.2 deg (at all other angles)
\n• Resolution, ±0.05 deg
\n• Power, 2 x LR03 (AAA) batteries
\n• Length 455mm x Width 28mm x Height 64mm
\n• Dimension, CE &amp, RoHS Compliant
\n
\nApplications Include,
\n• Building / Construction
\n• Mitre saws
\n• Table saws
\n• Planner fence
\n• Band saw fence
\n• Tilting angle plates
\n• Angle table
\n• Sine table
\n• Swivel / tilt vice
\n
\nSet Includes,
\n• Spirit Level
\n• Batteries
\n• Manual
\n
\n&nbsp,
\n
\nCommodity Code - 90173000
