5 Port Fast Ethernet Desktop Switch with 4 Port PoE

Quick and easy plug and play 5 Port Network switch, ideal for remote network access when adding to existing network, perfect to add ROV or Back deck operations cabins to the survey network.

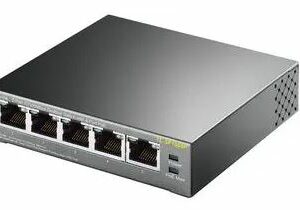

TL-SF1005P New
5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
5× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Plug and play with no configuration required

HARDWARE FEATURES
Interface • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T, UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX, UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output, 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) • Standard, 802.3 af/at compliant
• PoE Ports, Ports 1–4
• Power Supply, 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
• 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation • 6.48 BTU/h(no PD connected)
• 252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SF1005P
• Power Adapter
• Installation Guide
Environment • Operating Temperature, 0–40 ? (32–104 ?)
• Storage Temperature, -40–70 ? (-40–158 ?)
• Operating Humidity, 10–90% RH non-condensing
• Storage Humidity, 5–90% RH non-condensing



Commodity Code - 85176200
