MCDC5M Subconn Dummy connector

MacArtney 5pin SubConn connector - Blank

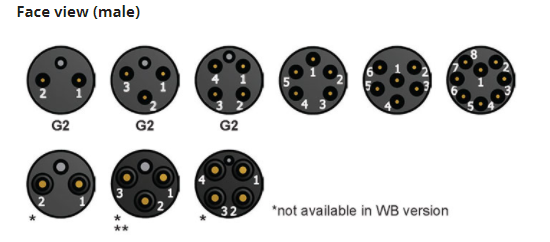

5 pin arrangement for use on Subsea Survey equipment and ROV.

Note, Subconn connectors must always
be greased with Molykote M44.
This can be purchased separately

Temperature rating (water), - 4 to 60C, 25 to 140F
Temperature rating (air), - 40 to 60C, - 40 to 140F
Storage temperature rating, - 40 to 60C, - 40 to 140F
Qualified pressure tested, 800 bar, 11,600 psi
Depth rating PEEK, 300 bar, 4,350 psi

Material specifications

Connector body, Chloroprene rubber
