NPort MOXA 5610 - 60cm Rack mountable
NPort MOXA 5610 - 60cm Rack mountable

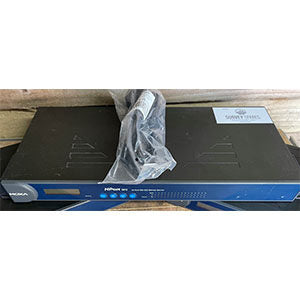

We have available, the Series 5610 NPort MOXA RS232 Device server, 60cm Rack mountable including mounting wings and power cable, in good serviceable condition, Cleaned and inspected for performance and operation, returned to factory default settings for easy setup. Accessible either using the front screen menu and toggle buttons or through the NPort Web Browser interface.
This unit has 16 potential RS232/485 or 422 inputs to Lan output. Serial whip to RJ45 and be supplied dependent upon configuration at an additional cost. these are an older revision of the current model but still fully functional and a fraction of the cost of a brand new unit.
Features
Introduction
With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Network Readiness for up to 16 Serial Devices
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.
19-Inch Rackmount Device Server
NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY Ports
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
LED Indicators to Ease Your Maintenance Tasks
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.
Adjustable Termination and Pull High/Low Resistors
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
-
Configuration Options
Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
-
Management
ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
-
Filter
IGMP v1/v2c
-
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
-
Linux Real TTY Drivers
Kernel versions, 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
-
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
-
Android API
Android 3.1.x and later
-
Time Management
SNTP
Security Functions
-
Authentication
Local database
-
Encryption
HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
-
Security Protocols
HTTPS (TLS 1.2)
SNMPv3
Serial Interface
-
Connector
8-pin RJ45
-
No. of Ports
8 or 16 ports
-
Serial Standards
NPort 5610 Series, RS-232
-
Operation Modes
Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
-
Baudrate
Supports standard baudrates (unit=bps), 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
-
Data Bits
5, 6, 7, 8
-
Stop Bits
1, 1.5, 2
-
Parity
None, Even, Odd, Space, Mark
-
Flow Control
None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
-
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
-
Terminator for RS-485
120 ohms
-
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Serial Signals
-
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
Tx+, Tx-, Rx+, Rx-, GND
-
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
-
RS-485-2w
Data+, Data-, GND
Power Parameters
-
Input Current
NPort 5610-8-48V/16-48V, 135 mA @ 48 VDC
NPort 5650-8-HV-T/16-HV-T, 152 mA @ 88 VDC
NPort 5610-8/16, 141 mA @ 100 VAC
Input Voltage
-
HV Models, 88 to 300 VDC
AC Models, 100 to 240 VAC, 47 to 63 Hz
DC Models, ±48 VDC, 20 to 72 VDC, -20 to -72 VDC
Reliability
-
Automatic Reboot Trigger
Built-in WDT
Physical Characteristics
-
Housing
Metal
-
Installation
19-inch rack mounting
-
Dimensions (with ears)
480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
-
Dimensions (without ears)
440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
-
Weight
NPort 5610-8, 2,290 g (5.05 lb)
NPort 5610-8-48V, 3,160 g (6.97 lb)
NPort 5610-16, 2,490 g (5.49 lb)
NPort 5610-16-48V, 3,260 g (7.19 lb)
