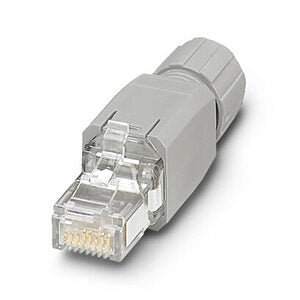

RJ45 IP20, Male Cat5 Field Connector

RJ45 IP20 QUICKON Plug Connector

Known offshore as a network field connector, ideal for easy and quick installation of Network cables on deck or in difficult locations where its not practical to make an RJ45 plug crimp connection.

Industrial strength RJ45 plug connector suitable for LAN CAT 5e applications. This RJ45 plug connector features QUICKON quick connect IDC technology for easy cable mounting. No specialist tools are required. The IDC connecting housing mounts to cables of 26 AWG to 23 AWG. The protective hood helps ensure a secure connection and a protection class of IP20. This RJ45 connector is also supplied with colour coding rings.

Features &amp, Benefits

• Quick connect technology (IDC)
• Specialist tools not required
• Protective hood for IP20 protection
• Colour coded rings
• 1000 insertion/withdrawal cycles

Product Application Information

CAT 5e RJ45 connectors are used in physical network and telecommunication applications, and are commonly used to connect computers on to local area networks (LAN).

Standards
EN 50173, ISO / IEC 11801

VS-08-RJ45-5-Q/IP20 - 1656725

The VS-08-RJ45-5-Q/IP20 male, 8 position RJ45 connector has a Cat5 category which makes it suitable for fast ethernet data transmission.
No special tools are needed to fit the connectors.

Features and Benefits

• IDC fast connection
• IP20 protection
• Transmits data safely and reliably
• Can take both rigid and flexible AWG 26-22 wires

Typical Applications

The RJ45 Field connector is designed to be used in communications &amp, networking applications.

Commodity Code - 85366990
